Dual mass flywheels – a unique kind of flywheel – have been used on a variety of vehicle applications since the late 1980s, and You’ll find them on the 1989-96 Chevy corvettes a variety of BMW, Audi, Porsche, Volkswagen models, some ford pickup trucks, and some Hyundai and Nissan applications.

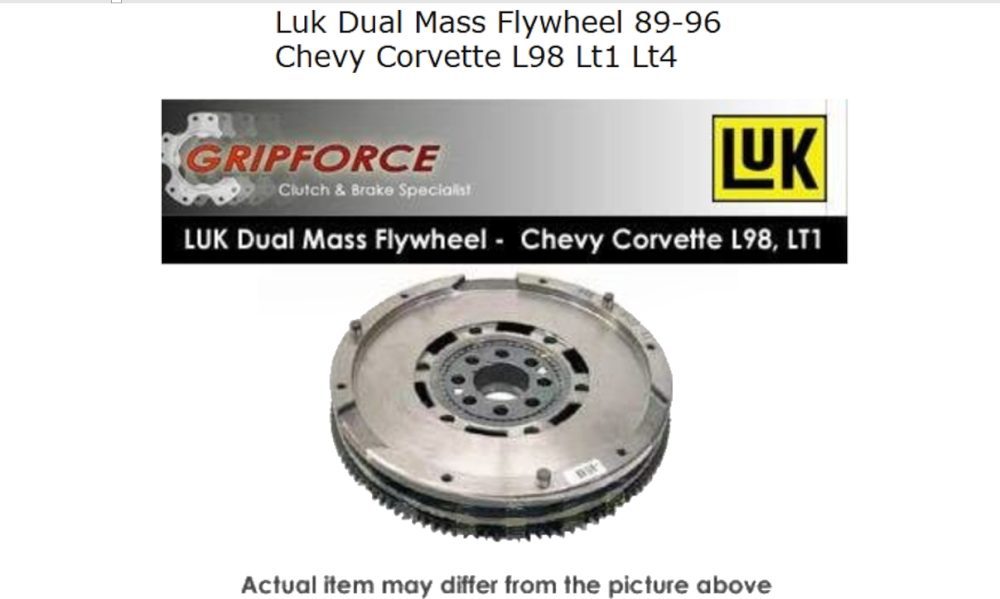

A dual mass flywheel is essentially two flywheels in one that provides some spring cushioning to dampen torsional crankshaft vibrations and shock loading when the clutch is engaged. Think of it as a flywheel with some “give.” In others, a solid disc is utilized and the dual mass flywheel provides all the dampening.
The two-piece assembly has a front “primary” flywheel and a rear “secondary” flywheel. The primary flywheel bolts to the crankshaft just like an ordinary solid flywheel, and has the ring gear for the starter. The clutch is bolted to the secondary flywheel, which is separate from the primary flywheel but attached to it with a series of coil springs mounted sideways between the two flywheels. The springs allow just enough movement between the flywheels to dampen the power strokes from a diesel engine so the vibrations are not felt throughout the drivetrain when the clutch is engaged. The cushioning effect also reduces shock loading on the transmission for longer gear life and less noise.
On gasoline-powered passenger car applications, a dual mass flywheel can provide the same kind of drivetrain cushioning and dampening for a smoother, quieter ride. A dual mass flywheel also helps smooth clutch engagement in vehicles with high torque output engines. It’s sort of like relocating the springs from the hub in the clutch disk further out so they can handle greater loads. Splitting the mass of the flywheel also reduces the rotating mass of the clutch assembly when shifts are made for smoother gear changes and reduced drivetrain noise.
Some dual mass flywheels use a slightly different design to achieve essentially the same end. Instead of relying solely on springs between the two flywheels to dampen vibrations and shock loading, a planetary gear set is used to control the motions between the primary and secondary flywheels.
DUAL MASS PROBLEMS
Despite the functional advantages that dual mass flywheels have over conventional one-piece solid flywheels, some dual mass flywheels have proved to be troublesome and prone to premature failure. The dual mass flywheels in early Ford 6.9L F-Series diesel trucks have experienced a high rate of failure because of a weak spring design in the OEM flywheel. Spring fatigue and failure causes the flywheel to make a rattling or clunking noise when the clutch is engaged. Depressing the clutch pedal may cause the noise to go away. Debris from broken springs can also become trapped between the back of the flywheel and engine causing damage to the rear main oil seal housing and oil pan.
FLYWHEEL MOAN
Another problem that has been reported is a vibration/moaning condition on some 1996-97 Ford F-250 and F-350 trucks with the 7.3L diesel engine and dual mass flywheel. Ford technical service bulletin #03-21-19 describes a moaning or vibration that can be heard or felt between 2,600 and 3,000 rpm. According to Ford, the cause is an imbalance between the engine, flywheel and clutch. The fix for this condition involves adding a stack of washers to one or more of the clutch cover bolts to change the balance of the rotating assembly. The idea is to add weight at various locations around the cover until the vibration goes away.
OTHER CAUSES OF FLYWHEEL FAILURES
Premature failure of a dual mass flywheel can be caused by a variety of things other than normal wear and tear. The flywheel is engineered to handle a specific load, so if the engine has been modified to produce more power (turning up the boost pressure, for example), or adding a turbocharger or supercharger to a naturally aspirated engine, or nitrous oxide, the engine may produce more torque than the stock dual mass flywheel can handle.
Overloading the drivetrain by pulling more weight than the vehicle’s maximum towing or hauling capacity can also overtax a dual mass flywheel and lead to premature failure.
On diesel applications, anything that causes the engine to run roughly (bad fuel injectors, improper injector timing, loss of compression in a cylinder, etc.) may produce enough vibration to cause premature failure of the damper springs or nylon spacers inside a dual mass flywheel.
If a clutch starts to slip at low mileage, the problem may be a worn or defective “friction ring” between the primary and secondary flywheels. The friction ring allows the secondary flywheel to slip when torque loads are too high (to protect the transmission). The friction ring can wear out if excessive torque loads are continuously applied (as when overloading a vehicle and exceeding its rated hauling or towing capacity).
To check for a worn slip ring, block the engine so it cannot turn and partially insert two long bolts in the bolt holes on opposite sides of the clutch cover. Insert a pry bar between the bolts and try to rotate the secondary flywheel with respect to the primary flywheel. Most dual mass flywheels will have about 8 to 11 degrees of free rotational movement before the friction ring engages. If the secondary flywheel rotates with hand pressure, the ring is slipping and the flywheel needs to be replaced.
REPAIR OPTIONS
Even if a dual mass flywheel does not experience a spring failure, the service life of most OEM dual mass flywheels is typically about the same as the clutch, which means the flywheel usually needs to be replaced when the clutch wears out. If you simply bolt in a new clutch, chances are your customer will have flywheel problems at some point down the road because of the weakened springs in the flywheel. That’s why many experts recommend replacing a dual mass flywheel when changing a clutch – especially if the flywheel has more than 80,000 or 90,000 miles on it. The flywheel should be considered a wear item just like the clutch, and should be replaced when a new clutch is installed.
Surface wear is another reason for replacement. The friction surface of a dual mass flywheel will wear the same as an ordinary flywheel as a result of normal clutch operation. The clutch surface may become rough, grooved or develop cracks or hard spots. Minor scoring and grooving is acceptable, but if the surface has hard spots, is warped or cracked, the flywheel must be replaced.
Resurfacing a dual mass flywheel with a rough or grooved surface is usually out of the question because of the two-piece design of the flywheel. To resurface a dual mass flywheel, the unit would have to be taken apart so the secondary flywheel could be remachined. The unit would then have to be “rebuilt” with new springs and reassembled with the same tolerances as before to work properly. Most of these units are not designed to be disassembled or serviced by technicians, so replacement is recommended if the unit shows a lot of wear or is making noise.
Dual mass flywheels are very expensive to replace. The list price for the flywheel alone is typically $800 to $1100. Add in a couple hundred bucks for a new clutch and clutch disk, plus labor to replace all the parts and you end up with a sizable repair bill.

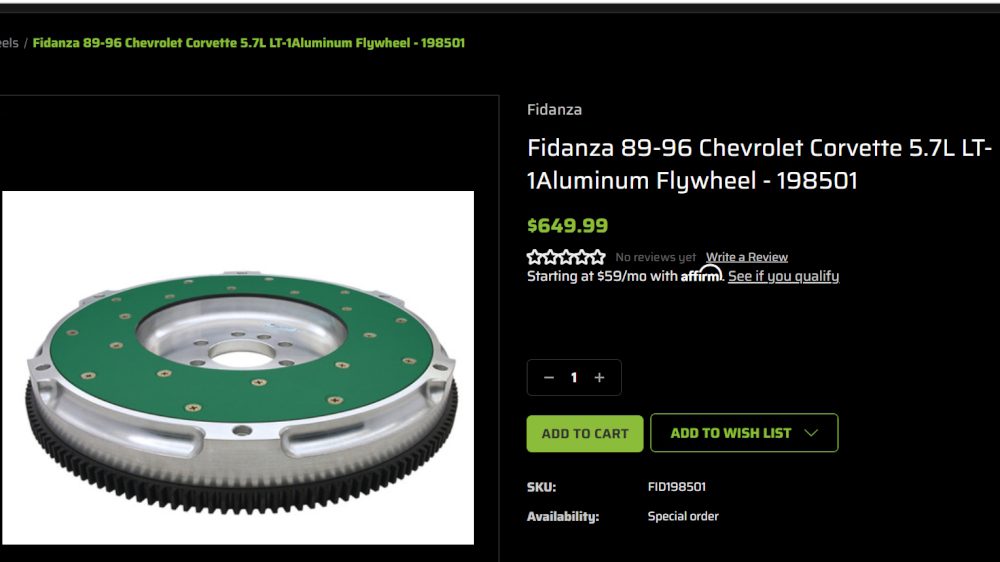

A more affordable alternative is to replace the OEM dual mass flywheel with an aftermarket one-piece solid flywheel (which also requires a different clutch and clutch disk). In most cases, you can get a new flywheel and clutch for hundreds less than what it would cost to replace a dual mass flywheel itself.
When the one-piece solid flywheel replacement kits were first introduced for the early Ford and GM dual mass flywheel applications, some people said the kits would cause more problems than they solved. They said a solid flywheel would not provide enough dampening to protect the gears in the transmission from shock loading and would cause the transmission to fail. It never happened. By using a slightly larger clutch (13 inch as opposed to a 11 or 12 inch clutch in the stock dual mass flywheel) with redesigned hub springs in the clutch disk, the solid flywheel replacement kits proved to work just fine in these applications and caused no harm to the transmission.
For racing and high-performance applications, similar kits have been developed for Corvette, Porsche and BMW applications. These are mostly solid one-piece flywheels with stronger clutches and high performance or ceramic clutch disks, but there are some lightweight racing dual mass flywheels for BWM and Porsche.
FLYWHEEL R&R
Replacing a dual mass flywheel may involve some extra work depending on the application.
On vehicles where the engine is balanced externally with the flywheel, a new replacement dual mass flywheel will have to be match balanced to the engine. The flywheel has holes where heavy metal plugs can be inserted to change the balance. Note the location of any balance weights on the original flywheel. Then install duplicate weights in the same position on the replacement flywheel. If the engine does not idle or run as smoothly as before, it may be necessary to move the weights around until the vibration is eliminated.
Article published Counterman, October 1 2005
AI CHATGPT Conversation related to Converting DMF to SMF
You said on 29 December 2024:
hello,
ChatGPT said:
ChatGPT
Hello! How can I assist you today?
You said:
I have a 1992 corvette C4 with the LT1 motor and a zf 6 speed manual transmission. The flywheel is a duel mass unit, which I am not sure is available today. Is this true? Therefore, if the duel mass flywheel becomes problematic the only solution is the change the duel mass flywheel to a single mass flywheel with a clutch that would support the single mass flywheel and work with a zf 6 speed transmission. Correct? If all the above is true, please advise me of all the parts I need to purchase in order to do the conversion and where to purchase the parts …
ChatGPT said:
Yes, you are correct that the 1992 Corvette C4 with the LT1 engine and ZF 6-speed transmission uses a dual mass flywheel (DMF) which, if problematic, could require replacing it with a single mass flywheel (SMF) setup. Since DMFs can wear out over time due to their design, some owners opt to convert to a SMF for greater reliability, although this can affect driving dynamics and may produce more NVH (noise, vibration, harshness) than the original DMF.
Here’s a breakdown of what’s involved in converting from a dual mass flywheel to a single mass flywheel for your Corvette:
1. Single Mass Flywheel
- You will need a single mass flywheel that fits the LT1 engine and the ZF 6-speed transmission. Several companies offer flywheels designed for this swap.
- Recommendation: Many Corvette performance shops offer SMFs for the LT1 engine, and some are designed for high-performance applications, so you can choose based on your power goals.
- Popular brands: Spec, McLeod, Centerforce, Fidanza, and Luke.
- Part numbers: Look for specific part numbers for 1992 Corvette LT1 engines with the ZF 6-speed transmission.
2. Clutch
- A clutch designed to work with a single mass flywheel will be required. Clutch kits typically include the disc, pressure plate, and throw-out bearing. These kits are engineered to match the SMF and offer smooth engagement and high torque capacity.
- Recommendation: Opt for a performance clutch if you plan on any performance upgrades (e.g., Spec, McLeod, Centerforce). Ensure that the clutch is rated to handle the power of your LT1 engine.
- Clutch disc: You’ll need a disc that matches your flywheel’s configuration, which could vary in terms of the number of splines and size.
3. Clutch Release Mechanism
- Ensure that the release bearing and associated parts are compatible with the new SMF setup. Depending on the flywheel and clutch choice, these parts may need to be upgraded as well.
4. Other Required Parts
- Pilot Bearing: Check that the pilot bearing or bushing is suitable for the new SMF setup.
- Flywheel Bolts: Be sure you have new bolts for the SMF, as they may differ in size or specification from the DMF bolts.
- Clutch Fork & Slave Cylinder: Check if these need to be replaced or upgraded. In some cases, people also upgrade to a heavy-duty slave cylinder for more reliable operation, but this is not always necessary.
- Flywheel and Clutch Alignment Tools: You may need these for proper installation.
5. Installation and Labor
- The swap is labor-intensive and involves removing the transmission and replacing the flywheel and clutch. Ensure that the work is done by a qualified mechanic if you are not familiar with manual transmission work.
Parts List:
- Single Mass Flywheel (specific for 1992 Corvette LT1 & ZF 6-speed)
- Example part number: Spec 2.3L V8 Single Mass Flywheel (check for LT1 compatibility).
- Clutch Kit (Single Mass Flywheel Compatible)
- Example: McLeod Street Pro Clutch Kit, or Spec Stage 1 Clutch Kit.
- Clutch Release Bearing (Ensure it is compatible with SMF).
- Flywheel Bolts (New bolts specific for the SMF).
- Pilot Bearing/Bushing (compatible with SMF).
- Clutch Alignment Tool (most kits come with one).
- Slave Cylinder (if needed, for heavy-duty or upgraded parts).
Recommended Sources:
- RockAuto: A great online auto parts store with many options for both OEM and performance parts.
- Summit Racing: Offers a range of clutch kits, flywheels, and accessories for high-performance cars like the Corvette.
- JEGS: Another reliable source for high-performance parts.
- Corvette Parts Suppliers: Websites like CorvetteMods, Corvette Central, or Zip Corvette specialize in Corvette-specific parts and often offer performance options.
- eBay: Sometimes you can find used parts in good condition, but be cautious and check the condition thoroughly.
Pros and Cons of the Conversion:
Pros:
- Durability: Single mass flywheels tend to be more durable and easier to maintain than dual mass flywheels.
- Cost: Replacing a dual mass flywheel can be expensive, and SMFs often offer a more affordable solution.
- Performance: Some people prefer the slightly quicker revving and lighter nature of SMFs in performance applications.
Cons:
- Increased NVH: Single mass flywheels can introduce more noise, vibration, and harshness compared to the smoother operation of a dual mass flywheel.
- Potential for increased clutch wear: Depending on the SMF and clutch kit you use, you might see more wear on the clutch or transmission parts due to the stiffer engagement.
Final Notes:
When performing the conversion, it’s critical to verify all parts for compatibility with your vehicle. Some performance-oriented SMF and clutch kits may require additional modifications or considerations for drivability, so it’s advisable to consult with an expert if you plan to use high-performance parts.
Let me know if you need specific part recommendations or if you need help with other details!
You said:
I have been told that the original Duel Mass Flywheel was balanced to the motors crankshaft is this true if this is correct what is the procedure to have the new SMF (Single Mass Flywheel ) balanced to the LT1 engine?
ChatGPT said:
Yes, it is true that the original dual mass flywheel (DMF) in your 1992 Corvette C4 with the LT1 engine was balanced to the engine’s crankshaft. This balance is important because the dual mass flywheel is designed to dampen vibrations and harmonics from the engine, which helps reduce wear on the clutch and transmission, as well as providing smoother operation.
When you replace the DMF with a single mass flywheel (SMF), it is essential to maintain proper balance between the flywheel and the engine. Since the SMF is a rigid unit, it does not have the same vibration-dampening properties as the DMF, and improper balancing can cause vibrations or other issues in the drivetrain, which could lead to premature wear and damage.
Procedure for Balancing the SMF to the LT1 Engine:
Here’s a general overview of the procedure to balance a single mass flywheel (SMF) to the LT1 engine: Question asked 29 December 2024.
- Flywheel Balance:
- Check the SMF Manufacturer’s Specifications: Before proceeding, check with the manufacturer of the SMF to determine if it is already balanced to the LT1 engine’s specifications. Many performance flywheels (like those from Spec, McLeod, Fidanza, etc.) are manufactured with balancing that is already done to match a wide range of common engines, including the LT1.
- Ensure the Correct Balance: For the LT1 engine, the flywheel must be balanced to the engine’s crankshaft, which has a specific external balance. The flywheel must also be matched to the crankshaft’s harmonic damper to ensure that vibrations are minimized.
- Professional Balancing:
- If you’re uncertain whether the flywheel is properly balanced, it’s best to take the flywheel to a professional machine shop or balancing specialist.
- The procedure involves placing the flywheel on a balancing machine that will spin it and check for any imbalance. The shop will either:
- Add weight to the flywheel (in the form of balance weights) to bring it in line with the engine’s balance specifications.
- Remove material from specific spots on the flywheel to correct any imbalance.
- Marking and Aligning the Flywheel:
- The flywheel will also need to be installed in the exact position that corresponds to the crankshaft’s balance. If you have the original dual mass flywheel, it is usually marked with an indicator showing its correct alignment to the crankshaft.
- When installing the SMF, ensure that it is oriented correctly (it should align with the same orientation as the original DMF).
- Ensure Compatibility of the Clutch Kit:
- The clutch kit you choose must also be compatible with the SMF. Some kits include instructions for balancing or specific guidance on how the flywheel should be mounted to ensure the right alignment and balance.
- Crankshaft Balancing:
- In rare cases, if you are building an engine with significant modifications, you may need to balance the entire rotating assembly, including the flywheel, crankshaft, and harmonic damper, to ensure everything is perfectly matched. However, this is typically only necessary in high-performance engine builds or when other modifications are made to the engine.
Practical Steps:
- Check the SMF: If you’ve already purchased the SMF, confirm whether it is advertised as balanced for the LT1 engine. Many high-quality aftermarket flywheels are pre-balanced for this application.
- If unbalanced: Take the flywheel to a reputable machine shop that has experience with balancing flywheels for specific engine applications.
- Installation: Ensure that the flywheel is installed in the exact same position relative to the crankshaft as the original flywheel, and torque the bolts to the correct specification.
Final Considerations:
- Flywheel Weight and NVH: As mentioned before, single mass flywheels tend to produce more NVH (noise, vibration, harshness) compared to dual mass flywheels, so balancing is key to minimizing vibrations during operation.
- Stock Crankshaft Balance: The LT1 engine’s crankshaft is externally balanced, meaning the balance relies on components like the flywheel, harmonic damper, and sometimes the flexplate (on automatics). Make sure the replacement flywheel is designed to handle this.
If you’re not sure about the balancing of the SMF you are considering, or if you’re unsure about the installation process, consulting with an experienced Corvette mechanic or a performance shop that specializes in Corvettes would be a good option.
Let me know if you need further assistance or have more questions!
You said:
Further I have also heard that to reduce transmission noise, but that are shims that are available that can help to reduce this noise. If true, where can these shims be purchased, what are their part number or proper name and what are the steps to install them.
ChatGPT said:
Yes, it’s true that some owners of manual transmission vehicles, including Corvettes, have used shims or sound-dampening washers to help reduce transmission noise and vibration when converting from a dual mass flywheel (DMF) to a single mass flywheel (SMF). These shims are typically used to address increased NVH (noise, vibration, harshness) that can occur when replacing a DMF with an SMF, especially if the SMF doesn’t incorporate the same vibration-dampening features as the original DMF.
Purpose of Shims to Reduce Transmission Noise:
- Vibration Dampening: When you replace a dual mass flywheel with a single mass flywheel, the SMF tends to transmit more vibration and noise to the transmission because it lacks the dampening properties of the DMF. Shims can help absorb or dampen some of these vibrations.
- Transmission Noise: The increased NVH can often manifest as a droning or whining sound from the transmission, especially at certain RPM ranges. Shims are designed to reduce this by altering the alignment and fit of the flywheel and clutch assembly.
Types of Shims/Noise Dampeners:
The specific shims or noise dampeners you need will depend on the design of the SMF you are using and the noise characteristics you’re experiencing. They are typically placed either:
- Between the flywheel and the crankshaft.
- Between the flywheel and the clutch disc, depending on the noise source.
These shims generally come in the form of special washers, alignment shims, or dampening rings.
Where to Buy Shims for Transmission Noise Reduction:
- Corvette-specific Parts Suppliers:
- Zip Corvette or Corvette Central may carry special parts and accessories for your 1992 C4, including noise-reducing components designed for clutch and flywheel systems.
- Summit Racing and JEGS also offer a range of performance parts and may carry shims or washers for reducing NVH in manual transmission applications.
- Flywheel Manufacturers:
- Some flywheel manufacturers (like Spec, McLeod, or Centerforce) may offer specific noise-reducing washers or shims as part of their flywheel kit or separately as an accessory to their flywheels. It is worth reaching out to the manufacturer for specific recommendations.
- Machine Shops or Custom Fabricators:
- In some cases, shims may need to be custom made, especially if you’re experiencing very specific noise issues or using non-standard components. A reputable machine shop or parts fabricator can make custom shims if necessary.
Part Numbers or Proper Names:
While there isn’t always a specific part number for shims universally (because these may vary depending on the flywheel or clutch kit), you can search for terms like:
- “Transmission noise dampening shims”
- “Flywheel vibration dampening washer”
- “Single mass flywheel shim”
It is always a good idea to contact the flywheel manufacturer directly to ask if they offer specific noise-reducing shims for their SMF kits, as some of the better-known brands may offer them as part of their product.
Steps to Install Shims:
If you do acquire the necessary shims to help reduce the noise, here’s a general step-by-step guide to installing them:
1. Remove the Transmission:
- To access the flywheel and clutch, you’ll need to remove the transmission and the clutch assembly. This will also involve removing the bell housing and any components blocking access to the flywheel.
2. Remove the Flywheel:
- After you have the clutch and pressure plate off, you can unbolt the flywheel from the crankshaft. Carefully remove the flywheel while ensuring that the pilot bearing and other components stay intact.
3. Install the Shims:
- Once the flywheel is removed, you will either:
- Place the shim between the flywheel and crankshaft, making sure it’s seated properly.
- Or, if the shims are designed for the clutch side, you would place them between the flywheel and clutch assembly.
- Ensure that the shims are properly aligned with the bolt holes, and use high-quality, hardened washers or shims to avoid any damage to the surfaces.
4. Reinstall the Flywheel:
- Reinstall the single mass flywheel (SMF), ensuring that it is torqued correctly to the crankshaft per manufacturer specifications.
- If the flywheel requires balancing, verify that the weight and alignment are correct before bolting it back on.
5. Reinstall the Clutch:
- Follow the instructions to install the clutch disc, pressure plate, and release bearing.
- Ensure that the alignment tool is used to properly center the clutch disc.
6. Reassemble the Transmission:
- With the clutch and flywheel in place, you can now reattach the transmission and make sure everything is torqued to specification.
7. Test and Adjust:
- After installation, test drive the vehicle to see if the noise reduction is adequate. If the NVH is still significant, you might need to consider additional shims or further modifications.
Final Notes:
- Shimming is not a guaranteed fix for all NVH issues, and the reduction in noise will depend on the root cause of the transmission sound. It’s also important to remember that excessive shimming can affect the clutch engagement and overall drivability of the vehicle.
- Driveability vs. NVH: A single mass flywheel is inherently noisier than a dual mass flywheel, so some noise may be expected. Shims may only reduce it somewhat but will not eliminate it entirely.
In some cases, converting to a better quality SMF or choosing a clutch and flywheel combo that is specifically designed to minimize noise might be more effective than just adding shims. If the NVH is still problematic after installing shims, further consultation with a Corvette performance expert might be needed to find the most suitable solution.
Let me know if you need more details or help with specific parts or installation!
You said:
Is there any other information I should be aware of in order to properly proceed with this conversion ?
ChatGPT said:
When converting from a dual mass flywheel (DMF) to a single mass flywheel (SMF) in your 1992 Corvette C4 with the LT1 engine and the ZF 6-speed manual transmission, there are several important factors and considerations that can help ensure the conversion is done properly and without unwanted issues. Below is a comprehensive list of additional things to keep in mind:
1. Flywheel and Clutch Compatibility
- Flywheel Type: Confirm that the SMF you purchase is specifically designed to be compatible with the LT1 engine and the ZF 6-speed transmission. Not all SMFs are created equal, and some may have different specs depending on the manufacturer.
- Clutch Kit: Ensure the clutch kit is designed to work with the SMF and the LT1 engine. Different clutch kits are designed for different types of flywheels (e.g., SMF or DMF), and not all clutch discs will work with an SMF.
- Pilot Bearing/Bushing: Some SMFs may require a different pilot bearing/bushing. Make sure that the pilot bearing is designed for use with the SMF you are installing, as using the wrong bearing can cause poor clutch engagement or additional NVH.
2. Balance of Flywheel and Crankshaft
- Balance Issues: The LT1 engine uses an external balance, which means the flywheel plays a crucial role in ensuring the engine is properly balanced. It’s important that your SMF is balanced correctly for the LT1 engine.
- Aftermarket Flywheels: While many aftermarket SMFs are balanced to factory specifications, always check with the manufacturer to ensure the flywheel you are buying is balanced for your specific engine, as incorrect balancing can lead to vibration, clutch wear, and other drivetrain issues.
- Rebalancing: If you’re unsure about the balance of the flywheel or if you notice any vibration during test drives after installation, you may need to rebalance the flywheel or have the entire assembly (crankshaft, flywheel, and harmonic damper) balanced together by a professional.
3. NVH (Noise, Vibration, Harshness) Considerations
- Increased NVH: As mentioned, switching to a single mass flywheel will increase NVH compared to a dual mass flywheel, as SMFs do not have the same damping ability. This might manifest as more noise or vibration during idle and driving.
- Shims: If you’re concerned about NVH and vibration, shims (as discussed earlier) may help mitigate some of the effects. However, they may not completely eliminate the problem. Experimenting with different flywheels and clutch setups, or even adjusting your driving style, may be necessary.
- Clutch Kit Type: Certain high-performance or performance street clutch kits may feature additional dampening elements designed to reduce NVH. If you are looking for a quieter or smoother feel, consider a kit that emphasizes smooth engagement and NVH reduction.
4. Clutch Release Mechanism and Slave Cylinder
- Clutch Fork and Slave Cylinder: Ensure that the clutch fork and slave cylinder are in good condition and compatible with the new SMF and clutch. If you’re replacing the clutch, it may be a good idea to replace the slave cylinder and release bearing as well to ensure smooth operation and reduce future maintenance needs.
- Clutch Master Cylinder: Check the clutch master cylinder for proper operation. In some cases, a heavy-duty clutch master cylinder may be beneficial, especially with stronger clutches or performance setups.
- Hydraulic Clutch Adjustments: If you’re upgrading to a higher-performance clutch or a more aggressive SMF, the hydraulic system (clutch master and slave cylinder) may need to be adjusted to ensure proper engagement.
5. Clutch Pedal Feel and Engagement
- Pedal Feel: When you convert to an SMF, especially with a performance clutch, the clutch pedal feel can change. It might be stiffer or require more effort to engage, depending on the type of clutch kit you use. Ensure that you are comfortable with the pedal feel before finalizing the setup.
- Engagement Characteristics: The clutch engagement may be different from what you’re used to with the DMF. SMFs typically engage more abruptly, so it’s important to get used to this change, especially if you’re using a performance-oriented clutch.
6. Flywheel Bolt Torque
- Proper Torque: Be sure to follow the manufacturer’s torque specifications for the flywheel bolts. Over-tightening or under-tightening the flywheel bolts can result in problems like flywheel damage or poor engagement, and potentially catastrophic failure.
- Locktight or Thread Sealant: Some flywheel bolt kits may require the use of thread sealant or loctite on the bolts to prevent them from loosening over time. Check the instructions that come with the flywheel kit.
7. Transmission Alignment
- Transmission Installation: When installing the transmission after the flywheel and clutch, make sure everything is properly aligned, especially the clutch disc. If the clutch disc is not aligned properly, it can cause difficulty in shifting, noisy operation, or premature wear on the clutch.
- Clutch Alignment Tool: Always use a clutch alignment tool to ensure the clutch disc is centered and aligned correctly during installation. This will make reassembly easier and avoid damaging the clutch or pressure plate.
8. Transmission and Driveline Health
- Inspect Transmission and Drivetrain Components: Before reinstalling the transmission, inspect your transmission mounts, driveshaft, and U-joints for any wear or damage. These components can be affected by increased NVH, and you want to ensure they are in top condition to handle any extra vibrations.
- Check for Leaks: While the transmission is out, check for any oil or fluid leaks from the transmission or rear main seal. It’s a good time to replace seals and gaskets if they are worn.
9. Test and Drive
- Initial Test: After installing the new flywheel and clutch, perform a careful test drive to check for any unusual noises, vibrations, or shifting issues. Pay close attention to clutch engagement, transmission noise, and any new vibrations at certain RPM ranges.
- Break-in Period: If you’re using a performance clutch, it may require a break-in period. Be sure to follow the manufacturer’s instructions for the proper break-in procedure to ensure long-term clutch life and proper operation.
10. Legal and Warranty Considerations
- State Emissions Laws: If you live in an area with strict emissions laws, ensure that the modification doesn’t impact compliance with emissions standards, particularly if any part of the driveline is modified in a way that affects emissions components.
- Warranty: If your car is still under warranty (unlikely for a 1992 model, but possible for newer vehicles), check with your dealer to ensure that this modification won’t void any existing warranty on your car.
Summary Checklist:
- Confirm compatibility of the SMF, clutch kit, and other related parts.
- Ensure the SMF is balanced to the LT1 engine’s crankshaft.
- Be aware of NVH issues and consider shims or dampeners if needed.
- Inspect and replace related drivetrain components like the pilot bearing, slave cylinder, and transmission mounts.
- Follow proper torque specifications for the flywheel bolts.
- Test and break-in the clutch according to manufacturer instructions.
Conclusion:
The conversion from a dual mass flywheel to a single mass flywheel in your Corvette C4 is a feasible and effective upgrade, but it requires careful attention to detail to avoid issues with balancing, NVH, and clutch engagement. By selecting high-quality parts, ensuring proper installation, and following the necessary procedures, you can achieve a successful conversion that improves performance without sacrificing reliability.
Let me know if you need further clarification or help with specific parts or steps!
You said:
Okay thank you. Lastly, what is the preferred transmission oil to use for the ZF6 transmission
ChatGPT said:
You’re welcome! When it comes to selecting the correct transmission fluid for the ZF 6-speed manual transmission in your 1992 Corvette C4, it’s crucial to use the proper type of fluid to ensure smooth shifting, proper lubrication, and long-term durability of the transmission.
Preferred Transmission Fluid for ZF 6-Speed (C4 Corvette LT1)
The ZF 6-speed manual transmission used in the 1992 Corvette C4 with the LT1 engine typically requires a GL-4 or GL-5 rated synthetic manual transmission fluid. The choice of fluid is important because it needs to provide adequate protection for the gears while also offering the correct viscosity and shifting characteristics for the specific design of the ZF transmission.
Recommended Transmission Fluids:
- GM Synchromesh Transmission Fluid (Part # 12346190):
- OEM Fluid: This fluid was originally recommended by GM for use in the ZF 6-speed transmission in the Corvette C4. It is a synthetic fluid designed for smooth shifting and protecting the synchromesh system.
- Viscosity: It’s a low-viscosity fluid that helps improve cold weather performance and reduces friction, allowing for smoother shifts.
- Specification: Meets GM specifications for the ZF 6-speed manual transmission.
- Royal Purple Synchromax:
- Alternative Fluid: Royal Purple Synchromax is a popular aftermarket alternative that provides superior performance and protection. It is a fully synthetic fluid that is often recommended for manual transmissions, especially those like the ZF 6-speed.
- Benefits: Offers superior protection, improves shifting smoothness, and extends the life of the transmission.
- Specification: Meets or exceeds the GM specifications for manual transmissions and is safe for use in the ZF 6-speed.
- Red Line MTL (Manual Transmission Lubricant):
- Alternative Fluid: Red Line’s MTL is another high-performance fluid that can be used in manual transmissions like the ZF 6-speed. It provides excellent wear protection and maintains proper viscosity in both cold and hot temperatures.
- Viscosity: It has a higher viscosity than Synchromesh, so it may provide a slightly different shifting feel (slightly stiffer shifts). It’s known for superior gear protection and reduced wear.
- Specification: Red Line MTL is GL-4 rated, which is generally suitable for manual transmissions with synchromesh.
- Amsoil Synchromesh Transmission Fluid:
- Alternative Fluid: Amsoil Synchromesh Transmission Fluid is another good option for the ZF 6-speed transmission. It is designed for manual transmissions that use a synchro system, such as the ZF 6-speed in the Corvette C4.
- Benefits: Provides excellent shift feel, reduces wear, and provides protection even under high-stress conditions.
- Specification: Meets the GL-4 and GL-5 specifications, making it suitable for the ZF transmission.
Key Factors to Consider:
- GL-4 vs GL-5: It’s essential to choose fluid that is GL-4 rated for the ZF 6-speed transmission. GL-5 fluids are more common in differentials and can be too harsh for the synchros in the ZF transmission, which could lead to premature wear. GL-4-rated fluids, like GM Synchromesh, are designed to work with synchro systems and will provide smoother shifting.
- Viscosity: A low-viscosity fluid like GM Synchromesh is ideal for maintaining smooth shifting in cold temperatures and reducing friction. However, fluids like Red Line MTL provide a slightly firmer shift feel, which some drivers may prefer.
- Synthetic: Synthetic transmission fluids are generally recommended because they perform better in extreme temperatures and provide better overall protection compared to conventional oils.
Fluid Capacity:
- The ZF 6-speed transmission in the 1992 Corvette typically holds around 2.2 to 2.4 quarts of transmission fluid (depending on the specific model and configuration).
Fluid Change Interval:
- It’s recommended to change the transmission fluid every 30,000 to 50,000 miles (48,000 to 80,000 km), or more frequently if you notice shifting problems, noise, or unusual behavior.
- Always check the fluid level after changing it, ensuring it is at the correct level (typically by checking the fill plug on the side of the transmission).
How to Change the Fluid:
- Lift the Vehicle: Use a jack to lift and secure the car, ensuring it’s level.
- Locate the Fill and Drain Plugs: The drain plug is located on the bottom of the transmission, and the fill plug is on the side of the transmission.
- Drain the Fluid: Use a wrench to remove the drain plug and allow the old fluid to fully drain out.
- Reinstall the Drain Plug: Once the fluid has drained, reinstall the drain plug and tighten it securely.
- Fill with New Fluid: Using a funnel or a pump, fill the transmission with the new fluid until it starts to drip out of the fill hole (indicating the proper level).
- Reinstall the Fill Plug: Once the fluid is filled to the correct level, reinstall and tighten the fill plug.
- Test Drive: After the fluid change, take the car for a short test drive to ensure smooth shifting and check for leaks around the drain and fill plugs.
Conclusion:
For your 1992 Corvette C4 ZF 6-speed transmission, the preferred transmission fluid is GM Synchromesh (Part #12346190), as it was the OEM recommended fluid. However, Royal Purple Synchromax, Red Line MTL, and Amsoil Synchromesh are also excellent alternatives that provide superior protection and smoother shifting.
Always ensure you’re using GL-4 rated fluid and follow the recommended fluid change intervals for the best performance and longevity of your transmission.
You must be logged in to post a comment.
