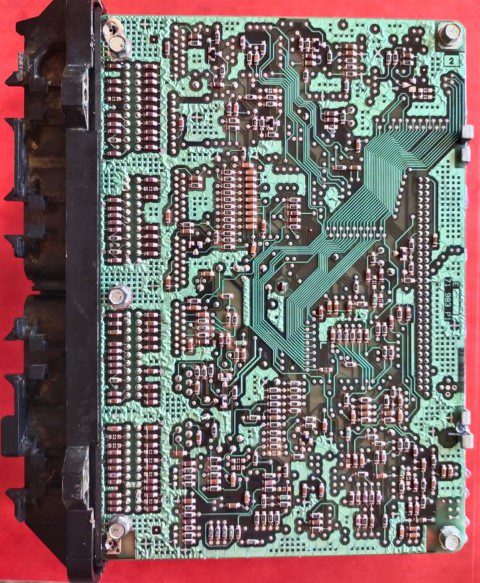

les composants de ECM

ECM – Un gros problème avec le V8 5.7 LT1 de Chevy

What I know about the 1992/1993 Corvette LT1 ECM and MEMCAL —–

92 & 93 Corvette’s ECM and the 93 Camaro’s & Firebirds all use the same ECM.

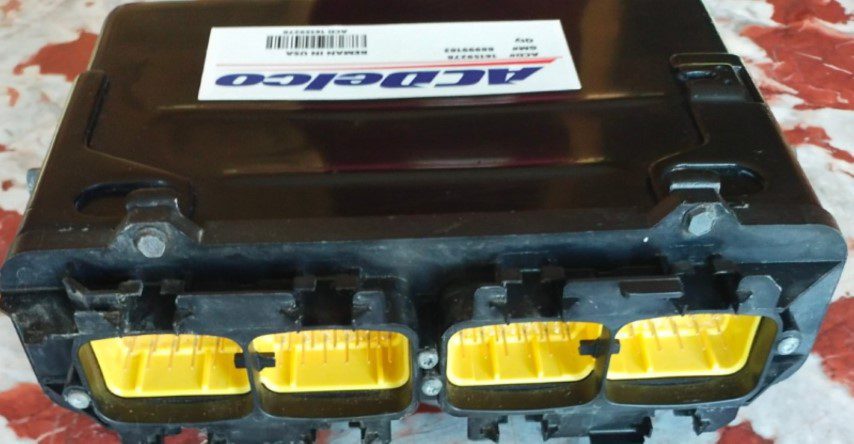

The Correct ECM for a 92-93 Manual shift Corvette would be a ACDelco # 16159278 or the GM part # 88999183.

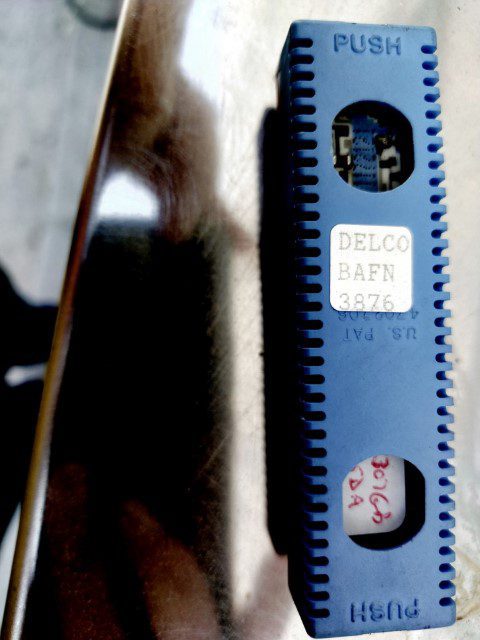

The Correct MemCal for a manual trans Vette’s ECM would be ” DELCO BAFN 3876 ” and if your ECM requires repairs, In my opinion, the best place to have it Tested and Repaired is Cardone.

It’s important to understand the differences between the ECMs & Optisparks for all years of the LT1 Engines.
The LT1 engine, produced by Chevrolet for various cars between 1992 and 1997, underwent significant changes over the years, particularly in the Optispark ignition system and the ECM (Engine Control Module). The differences between the 1992-1993, 1994-1995, and 1996 LT1 engines primarily involve improvements in reliability, emissions control, and diagnostics.

1992 and 1993 LT1 Engines (First Generation Optispark)
  1. Optispark:
    • The Optispark ignition system is an optical distributor mounted at the front of the engine, driven off the camshaft.
    • Design: In the 1992 and 1993 models, the Optispark was a first-generation system with a ventless design, meaning it had no venting system for moisture or ozone. This made it prone to moisture buildup, leading to failures when moisture entered the unit, which would cause misfires or ignition failure.
    • Susceptibility to failure: It was located in an area of the engine that made it susceptible to problems from water or oil leaks. This early version of Optispark was less reliable due to poor sealing, and moisture could interfere with the optical sensor.
  2. ECM (Engine Control Module):
    • The 1992 and 1993 models used an older ECM (ECM 8051), a more basic engine management system compared to later years.
    • The ECM in these models had limited onboard diagnostics, lacking the OBD-II features introduced in later models. It was also slower in processing data and managing the engine’s performance.
    • The ECM controlled fuel injection, spark timing, and emissions, but did not offer the more advanced capabilities of later versions like sequential fuel injection or real-time monitoring for enhanced diagnostics.
1994 and 1995 LT1 Engines (Second Generation Optispark and Updated PCM)
  1. Optispark:
    • The 1994-1995 models featured a second-generation Optispark system with significant improvements over the earlier design.
    • Ventilation: The new version was vented with a vacuum line and an air intake from the engine, allowing moisture and ozone to be expelled, which improved the durability of the system. This venting system helped reduce the moisture-related failures seen in the 1992-1993 models.
    • Sealing: The Optispark was better sealed, leading to fewer issues with contamination from oil leaks or environmental moisture.
  2. PCM (Powertrain Control Module):
    • Starting in 1994, the LT1 engines switched to the Powertrain Control Module (PCM 16188051), which was more advanced than the previous ECM.
    • Sequential Fuel Injection: This PCM introduced sequential fuel injection (SFI) instead of the earlier batch-fire fuel injection. SFI allows for more precise fuel control, firing each injector independently based on the crank and camshaft positions.
    • OBD-I Diagnostics: The 1994-1995 PCM was OBD-I compliant, offering more robust diagnostic capabilities compared to the earlier ECM. However, it was still not as advanced as OBD-II, which became standard in 1996.
1996 LT1 Engine (OBD-II and Improved Optispark)
  1. Optispark:
    • The 1996 Optispark system was similar to the 1994-1995 vented version, but with some minor improvements.
    • Vent and vacuum system: The venting system remained, and GM continued to fine-tune the sealing and moisture protection, though no major design overhaul occurred.
    • Reliability improvements: Some minor improvements to the distributor cap and rotor materials were made, but the overall design was based on the second-generation Optispark introduced in 1994.
  2. PCM and OBD-II:
    • The 1996 LT1 marked the transition to OBD-II (On-Board Diagnostics II), a significant change from the previous OBD-I system.
    • OBD-II Compliance: OBD-II introduced real-time monitoring of emissions-related components and provided a standardized diagnostic system that allowed for more detailed information about the engine’s performance. This made it easier for mechanics to troubleshoot problems using a standardized scan tool.
    • Enhanced PCM (Powertrain Control Module): The 1996 PCM was designed to meet OBD-II standards and provided even more precise control over fuel injection, ignition timing, and other engine functions. It also supported additional sensors, which improved emissions control and engine efficiency.
    • Emissions Control: The OBD-II system monitored more parameters to ensure that emissions standards were being met, and it could detect failures like catalytic converter efficiency or fuel vapor leaks. This led to the installation of additional components like secondary oxygen sensors to monitor the performance of the catalytic converter.
Summary of Key Differences:
  1. Optispark Ignition System:
    • 1992-1993: First-generation Optispark, ventless, prone to moisture and failure.
    • 1994-1995: Second-generation Optispark, vented, more reliable with improved sealing.
    • 1996: Further improvements to the second-generation Optispark with better reliability, but no major design changes.
  2. Engine Control Systems:
    • 1992-1993: Used an older ECM with batch-fire injection and limited diagnostics (OBD-I).
    • 1994-1995: PCM introduced with sequential fuel injection (SFI) and improved diagnostics (OBD-I).
    • 1996: Upgraded PCM to comply with OBD-II, offering more precise control, enhanced emissions monitoring, and real-time diagnostics.
Why the Changes?

1996: Introduction of OBD-II for stricter emissions regulations and more advanced diagnostics, along with further refinement of the Optispark for improved durability.

1992-1993: Early design with some reliability issues, particularly with the Optispark.

1994-1995: GM made improvements to address the moisture issues in the Optispark and enhanced the engine management system with better fuel control and diagnostics.

Opti Mechanical Differences

There are mechanical differences in how the Optispark distributor connects to the camshaft between the 1992-1993 LT1 engines and the 1994-1996 LT1 engines. These differences are due to changes in the spline drive design, affecting compatibility between the two groups of years.

1992-1993 LT1 Optispark (First Generation) – Camshaft Drive:
  • The 1992-1993 Optispark units use a single pin drive system.
    • The Optispark distributor is mechanically connected to the camshaft via a single spline or pin that fits into the front of the camshaft.
    • This setup is less robust and precise compared to later designs, which made it more prone to mechanical wear over time. If the pin or slot wore out or misaligned, it could cause issues with timing and the performance of the ignition system.
    • This mechanical connection was specific to the early version of the Optispark, making the 1992-1993 Optispark incompatible with the camshaft used in later LT1 engines (1994-1996) unless the camshaft or drive mechanism was modified.
1994-1996 LT1 Optispark (Second Generation) – Camshaft Drive:
  • The 1994-1996 Optispark units use a reluctor or splined drive system.
    • Starting in 1994, GM improved the mechanical connection by switching to a more robust spline drive system. This splined connection provided a stronger, more durable engagement between the camshaft and the Optispark distributor.
    • The spline drive is more precise and reduces the chances of mechanical wear and misalignment, which were issues with the single-pin drive system used in the earlier models.
    • As a result, the 1994-1996 Optispark distributors are not interchangeable with the 1992-1993 versions unless you swap the camshaft or the drive mechanism to match the Optispark’s design.
Why the Change?
  • Improved durability and precision: The change from a single-pin drive to a splined drive was aimed at improving the durability and mechanical reliability of the Optispark connection. The spline design helps ensure a better fit and more consistent operation over time, addressing issues like wear or timing misalignment that were more common in the earlier models.
Compatibility Note:
  • The mechanical differences mean that the 1992-1993 Optispark distributors are not directly compatible with 1994-1996 LT1 engines, and vice versa, unless you modify the camshaft or use the appropriate generation of Optispark for your specific engine year.

Summary of Spline Differences:

  • 1992-1993 Optispark: Uses a single-pin drive system to connect to the camshaft.
  • 1994-1996 Optispark: Uses a splined drive system, which is more durable and precise.

This difference in mechanical design is one of the key reasons why the 1992-1993 and 1994-1996 Optisparks are not interchangeable without significant modifications.

Fuel System Differences

When comparing batch and sequential fuel injection (SFI) in the context of the 1992-1996 Corvette LT1 engine, the consensus is that sequential fuel injection (SFI), which was introduced in the 1994 model year, offers advantages for performance, fuel efficiency, and emissions over batch fire injection, which was used in the 1992-1993 models.

Batch Fire Injection (1992-1993 LT1)
  • How It Works:
    • In batch fire injection, the fuel injectors fire in groups (or batches) rather than individually.
    • All injectors on one bank of the engine fire at the same time, regardless of the position of the individual cylinder’s intake valve. Some injectors will spray fuel when the intake valve is open, and others will spray when it’s closed, resulting in the fuel waiting in the intake port for the valve to open.
  • Performance Impact:
    • Less precise fuel delivery: Since the injectors fire without considering the exact timing of the intake valve’s opening, batch injection can lead to less efficient fuel atomization and potentially more unburned fuel.
    • Lower fuel efficiency: The system is less efficient compared to SFI because fuel isn’t always injected at the optimal time. This can result in uneven combustion and increased emissions.
    • Reduced low-RPM performance: At lower engine speeds, batch injection can result in sluggish throttle response and less efficient combustion, affecting both power delivery and throttle feel.
    • Simpler and less costly: Batch fire injection systems are generally simpler and less expensive to produce but lack the refined control needed for higher performance applications.
Sequential Fuel Injection (SFI) (1994-1996 LT1)
  • How It Works:
    • In sequential fuel injection, each injector fires individually, timed specifically to match the opening of the intake valve for each cylinder. This is much more precise because the fuel is injected exactly when the engine needs it.
    • The PCM (Powertrain Control Module) monitors the position of the crankshaft and camshaft to ensure that fuel is delivered to each cylinder at the ideal moment during the intake stroke.
  • Performance Impact:
    • More precise fuel delivery: SFI ensures that the fuel is injected right as the intake valve opens, leading to better atomization and more efficient combustion.
    • Improved fuel efficiency: Since fuel is delivered at the optimal time, SFI reduces waste and improves the air-fuel mixture, leading to better fuel economy and lower emissions.
    • Better throttle response: SFI offers more precise control over fuel delivery, leading to smoother and more responsive throttle action, especially at lower RPMs, where batch fire systems may feel sluggish.
    • More power potential: By optimizing fuel delivery for each cylinder, SFI can offer a modest improvement in horsepower and torque, especially under high-load conditions where precise fuel control is critical.
Performance Comparison:
  1. Fuel Efficiency:
    • SFI: More efficient due to precise timing of fuel delivery, leading to better fuel atomization and reduced fuel waste. This translates into better fuel economy and lower emissions.
    • Batch Fire: Less efficient, with fuel injected whether or not the cylinder is ready to burn it, leading to some fuel waiting in the intake port, which can cause less consistent combustion.
  2. Throttle Response:
    • SFI: Offers better throttle response, especially at lower RPMs, where the precision of fuel delivery improves the smoothness of power delivery.
    • Batch Fire: Can feel less responsive, particularly at lower engine speeds, where the imprecise timing of fuel injection results in uneven power delivery.
  3. Power Output:
    • SFI: Sequential injection may yield a slight increase in horsepower and torque due to improved fuel control and combustion efficiency, particularly at higher RPMs or under load.
    • Batch Fire: Typically does not offer the same level of control, which can result in marginally lower power output compared to SFI.
  4. Emissions and Smoothness:
    • SFI: Reduces emissions due to more complete and efficient combustion. Also contributes to a smoother running engine with fewer fluctuations in performance.
    • Batch Fire: Less optimized for emissions and can result in slightly rougher engine performance, especially in cold start conditions.
Conclusion: SFI vs. Batch Fire Injection for Performance

For performance, sequential fuel injection (SFI), which was introduced in the 1994-1996 LT1 engines, is the superior option. Its precise control over fuel delivery improves fuel atomization, combustion efficiency, throttle response, and overall engine performance. While batch fire injection (1992-1993 LT1) is simpler and functional, it lacks the fine control that SFI offers, resulting in lower fuel efficiency, slightly less power, and slower throttle response.

If performance is the primary goal, SFI is the better choice, offering better fuel management and improved engine performance in various driving conditions. This is why the 1994-1996 Corvette LT1 engines are more refined and offer better overall drivability than their 1992-1993 counterparts.

Based on the 32 year history of enjoying my 92 (purchased new in 92) it has been a very dependable & reliable machine.  Zero regrets.

However, back in 2007 I shipped the Vette to LPE in Indiana to have them work their magic on the motor and when the Black Prince returned home the motor had grown to 383 ci and gained another 140 ponies, torque increased to 430 with 395 WHP. But, age is catching up to the Prince and some parts are becoming more difficult to find – such as the 92-93 ECM, not to mentioned that when the Prince gained his extra HP, LPE calibrated a New EPROM for the ECM Memcal component. And, what to do if something should happen to the one and only modified LPE EPROM? Anyway, after searching for months I finally located an ECM out of a 93 Manual Vette and as we know the 92-93 are the same units (but the Memcal is specific to whether your ride is a Manual or Automatic ….. so take care when purchasing a Memcal). My next step was to find a local Electronic Auto repair shop, which I did, and they were able to duplicate my LPE EPROM and run tests of my newly purchased backup ECM. So, for the moment I now have a 100% compatible ECM as a backup  to the original one from LPE. I have swapped the two back and forth and the Vette performs equally well with either of them installed.

As it seems the holy grail of a LT1 ECMs is the ODB2 compliant found in the 96 – Do I know of anyone that has installed a 96 ECM in a 92-93 Vette. NO, not sure if this conversion has ever been done?  As I have not as yet to find anyone in any Corvette Groupe or any other LT1 group, provide any first hand knowledge, and based on what little I know – it appears that one would have to change at a minimum the WHOLE engine wiring harness…. and then it would seem one would have to REPIN the new harness to the PCM. There is documentation available to assist one do this, but is seems it would be a rather tedious task.

ALSO, as the 92 – 93 LT1 injectors are bank to bank firing, and the 94+ FLASH PCM are sequential firing, ALL the injectors would have to be rewired too. And, I believe when all of this is completed the signals from the Opti should work fine as well as all the other sensors. BUT NOT SURE.

Again, this is what I think I know and not what I can say is absolute.

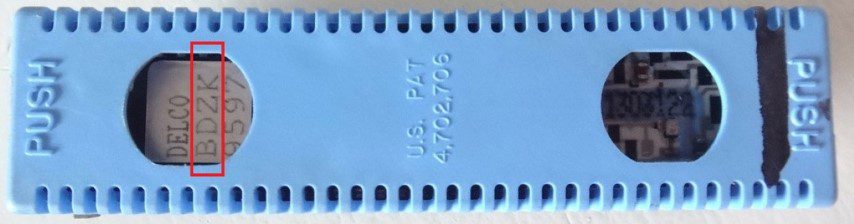

Info on the 92/93 MEMCAL module.

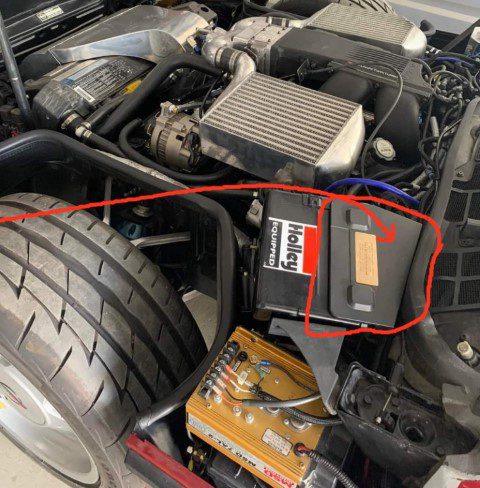

The MEMory and CALibration (MEMCAL) device is a blue colored plastic Removable Unit that is located on the underside of the ECM and is found by removing it’s housing plate. MEMCAL is it’s general term for the components within; 1) a 27C256 EPROM and 2) it’s back-up fuel control system consisting of an IC and it’s analog circuitry.

The EPROM mostly contains the “fuel air calibrations” values along with several other base settings, such as the rev and speed limiters, etc. Note: It’s very important to use the correct Memcal dependent of the transmission – Manual or Automatic!

** That is mainly what I know about the device. I am not familiar about how one goes about making modifications to the EPROM’s data, which is referred to as a Tune (tuning). But it seems this process is much more complicated for the 92 – 93 than for the 94+ ECMs, therefore the necessity to have a complete backup ECM when your unit fails at some point in the future years! My thought anyway – be prepared as it will happen.

IF your ECM needs repairs I would highly recommend sending the unit to CARDONE (refer to Auto Zone) ….. to locate the MEMCAL – remove the four (4) screws on the underside, remove the plate and you will find/see the Memcal.

1992 1993 LT1 5.7 Corvette Camaro Trans Am ECM PCM Computer ECU 16159278.

Again, the complete unit is the ECM and the EPROM not EEPROM (big difference) is the blue component inside the ECM and then inside the Blue Memcal you will fine the EPROM.

FYI – I purchased my 92 back in 1992 and the EPROM was aok for 15 years. Then in 2007 LPE modified the LT1 and the years since then the modified EPROM has worked flawlessly. Don’t know what else I can say ….

Alternate solutions that I am aware of but have not used nor spoken to anyone that has done so.

Other solutions available today for controlling your early LT engine is going to be with a 24x kit from eficonnection being driven by a Holley Terminator X ECU. This kit: 24x/1x LT1 Bundle – Holley Terminator X for Universal LT1 Engines – EFI Connection, LLC

There is a kit that includes a Holley HP ECU that allows for better logging and stuff but for a higher cost: 24x/1x LT1 Bundle – Holley HP for Universal LT1 – EFI Connection, LLC

This will correct controller problems, wiring or harness problems, optispark problems, and it will give you tuning capabilities. This setup will also bring new options like the ability to add or delete sensors as you see fit and also will allow for sequential fueling instead of batch firing a whole bank at a time.

Another possible source for reprogramming your EPROM would be TunerCATS – http://www.tunercat.com/ , and again have not used their products or solutions.
